Overview¶

In this tutorial you will learn how to recognise trained 3D object models. You will first model objects by rotating them in front of an RGB-D camera. These objects can then be recognised by a recognition component via a ROS service call. You will also learn how much you can (or can’t) trust recogniser responses.

This tutorial requires installation of a specific vision library, which is part of the STRANDS repositories.

The V4R (Vision for Robotics) library¶

This is now released as Ubuntu packages as well, so there should be no need to install this from source as detailed below. Just install with ``sudo apt-get install ros-indigo-v4r-ros-wrappers`` and you should be ready to go! Jump straight to [[Tutorial-materials-3#object-modelling]].

This library is part of the STRANDS repositories ‘https://github.com/strands-project/v4r’. The library itself is independent of ROS, so it is built outside ROS catkin. There are wrappers for ROS ‘https://github.com/strands-project/v4r_ros_wrappers’, which can then be placed inside the normal catkin workspace.

Dependencies¶

openni drivers: sudo apt-get install libopenni-dev libopenni-sensor-primesense0
Qt 4 (http://qt-project.org/): sudo apt-get install libqt4-dev
Boost (http://www.boost.org/): comes with ubuntu
Point Cloud Library 1.7.x (http://pointclouds.org/): comes with ROS
Eigen3 (http://eigen.tuxfamily.org/): sudo apt-get install libeigen3-dev
OpenCV 2.x (http://opencv.org/): comes with ROS
Ceres Solver 1.9.0 (http://ceres-solver.org/): sudo apt-get install libceres-dev
OpenGL GLSL mathematics (libglm-dev): sudo apt-get install libglm-dev
GLEW - The OpenGL Extension Wrangler Library (libglew-dev): sudo apt-get install libglew-dev
libraries for sparse matrices computations (libsuitesparse-dev): sudo apt-get install libsuitesparse-dev

Installation¶

Clone ‘https://github.com/strands-project/v4r’ somewhere on your computer, e.g. ~/somewhere/v4r/') and build using cmake: ` cd ~/somewhere git clone ‘https://github.com/strands-project/v4r’ cd v4r mkdir build cd build cmake .. make sudo make install (optional) ` Now you can install the STRANDS ros wrappers. Clone v4r_ros_wrappers into your catkin workspace: ` cd my_catkin_ws/src git clone https://github.com/strands-project/v4r_ros_wrappers.git cd .. ` Then call catkin_make once. If you chose not to install the V4R library (optional point above) you will get an error regarding V4RModules.cmake. This is easy to fix: ` cd my_catkin_ws/build ccmake ../src ` Locate the optionV4R_DIR` and set it, according to where you build V4R library, e.g.:

V4R_DIR   /home/somewhere/v4r/build

Then call catkin again, and all should now compile fine.

Object modelling¶

First you have to model all the objects you want to recognise later. You use an offline tool for this, the RTM Toolbox.

Place the object on a flat surface on a newspaper or something similar. This allows you to rotate the object without touching it. The texture on the newspaper also helps view registration. The pictures below were taken with the object on a turn table, which is the most convenient way of rotating the object.
Start the modelling tool: ~/somewhere/v4r/bin/RTMT
Press “Camera Start”: You should now see the camera image
Press “ROI Set” + click on the flat surface next to the object

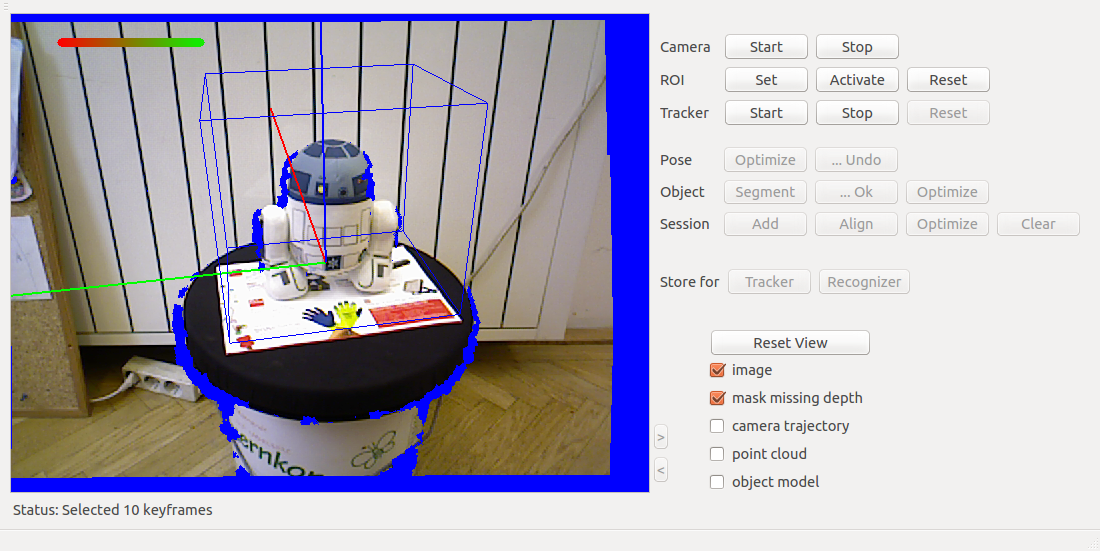

Press Tracker Start: you now see the tracking quality bar top left
Rotate 360 degrees, the program will generate a number of keyframes.

IMPORTANT: Do not touch the object itself while moving it.
Press “Tracker Stop”
Press “Camera Stop”
Press “Pose Optimize” (optional): bundle adjustment of all cameras (be patient!)

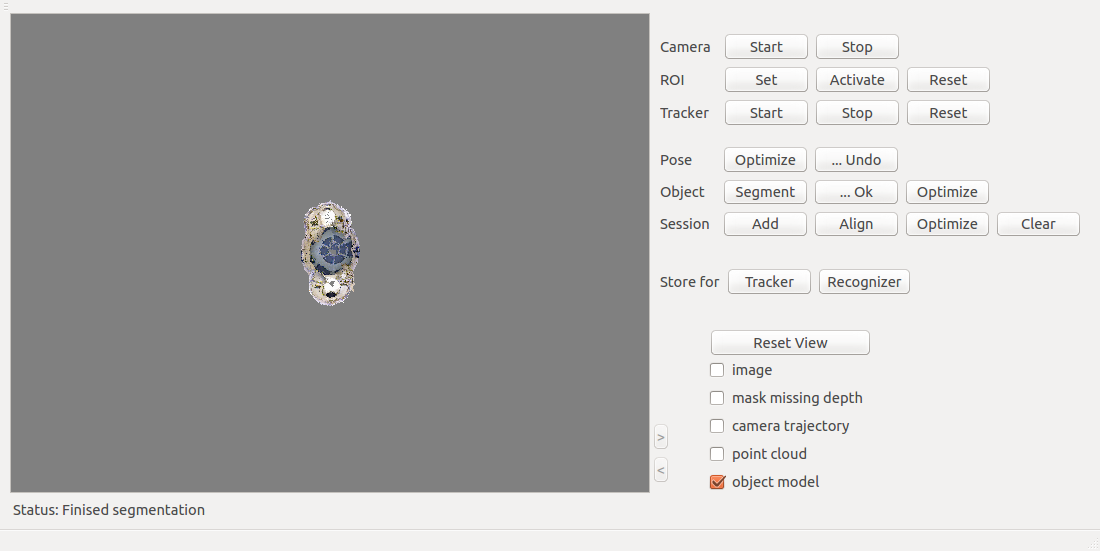

Press “Object Segment”: The object should already be segmented correctly thanks to the ROI set previously

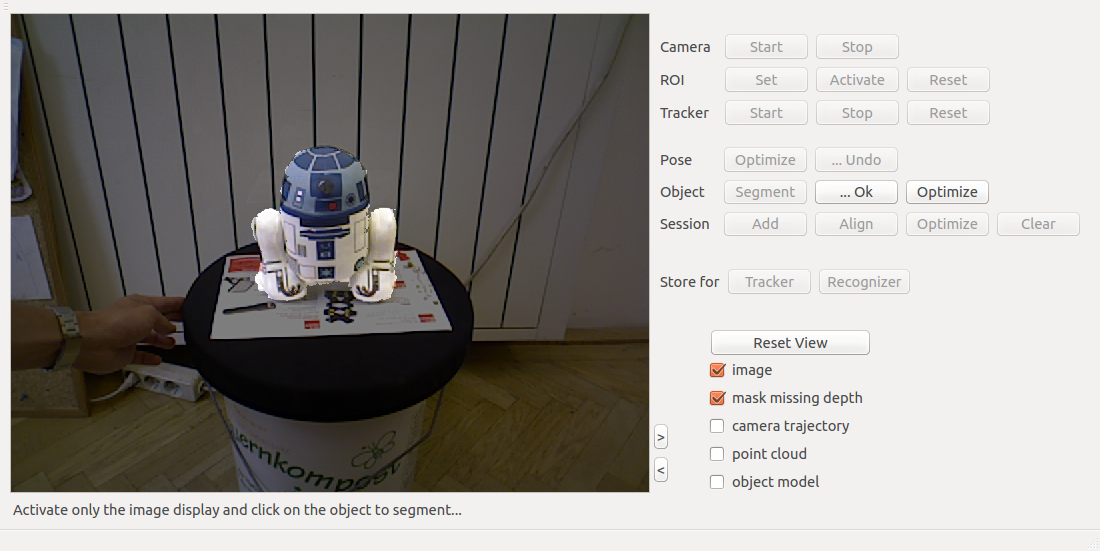

You can check segmentation (< > buttons), and you can click

to wrong segmentations (undo) or add areas.
Press “Object …Ok”
Press “Store for Recognizer”: saves the point clouds in a format for object recognition. You will be asked for an model name.

By default the program will store models in various subfolders of

the folder “./data”, which will be created if not present. This can be changed in the configuration options (see below).
Press “Store for Tracker”: save a different model suitable for tracking
If the 3D point cloud visualization is activated +/- can be used to increase/ decrease the size of dots

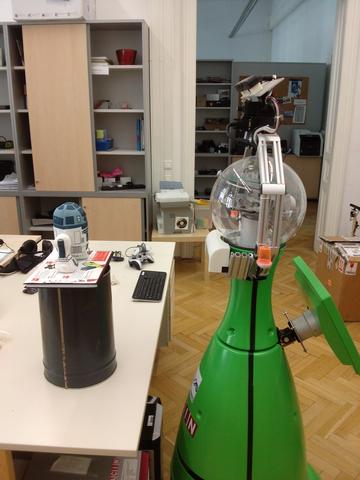

This is a convenient way to model objects with the STRANDS robots. Put the objects on something elevated (a trash can in this case) to bring it within a good distance to the robot’s head camera.

Configuration options:¶

Set data folder and model name:

(File -> Preferences -> Settings -> Path and model name)
Configure number of keyfames to be selected using a camera rotation and a camera translation threshold:

(File -> Preferences -> Settings -> Min. delta angle, Min. delta

camera distance)

Trouble shooting¶

If you press any of the buttons in the wrong order, just restart. Recovery is futile.
If you do not get an image, there is a problem with the OpenNI device driver. Check the file /etc/openni/GlobalDefaults.ini, set UsbInterface=2 (i.e. BULK).

Object recognition¶

With the models created above you can now call the object recognition service within the STRANDS system.

Start the object recogniser on the side PC with the head camera attached. To do this, you must SSH into the side PC without X forwarding then run:

export DISPLAY=:0
roslaunch singleview_object_recognizer recognition_service.launch

There are some parameters to set in the launch file:

<launch>
  <arg name="data_dir" default="/home/somewhere/v4r/data" />
  <arg name="do_sift" default="true" />
  <arg name="do_shot" default="false" />
  <arg name="do_ourcvfh" default="false" />
  <arg name="chop_z" default="3.0" />
  <arg name="cg_size_thresh" default="5" />
  <arg name="knn_sift" default="3" />

  ...
</launch>

The ones you might want to change are: chop_z which sets the maximum distance where objects are searched (note, that RGB-D data from the Asus or Kinect gest worse with distance); and cg_size_thresh where higher values (5 or 6, the minimum is 3) increase speed at the ost of possibly missing objects if they are e.g. half occluded.

The recogniser offers a service /recognition_service/sv_recognition, defined in v4r_ros_wrappers/recognition_srv_definitions/srv:

sensor_msgs/PointCloud2 cloud  # input scene point cloud
float32[] transform            # optional transform to world coordinate system
std_msgs/String scene_name     # optional name for multiview recognition
std_msgs/String view_name      # optional name for multiview recognition
---
std_msgs/String[] ids                 # name of the recognised object model
geometry_msgs/Transform[] transforms  # 6D object pose
float32[] confidence                  # ratio of visible points
geometry_msgs/Point32[] centroid      # centroid of the cluster
object_perception_msgs/BBox[] bbox    # bounding box of the cluster
sensor_msgs/PointCloud2[] models_cloud  # point cloud of the model transformed into camera coordinates

For you, all you have to provide is a point cloud. The recogniser will return arrays of ids (the name you gave during modelling), transforms (the 6D object poses), as well as confidences, bounding boxes and the segmented point clouds corresponding to the recognised portions of the scene.

There is a test ROS component for you as an example:

rosrun singleview_object_recognizer test_single_view_recognition_from_file _topic:=/camera/depth_registered/points

where you have to set the topic to the respective RGB-D source of your robot, e.g. the head_xtion.

The recogniser publishes visualisation information. * /recognition_service/sv_recogniced_object_instances_img: displays the original image with overlaid bounding boxes of recognised objects * /recognition_service/sv_recogniced_object_instances: the model point clouds of the recognised objects, in the camera frame. The following picture shows an example where R2-D2 is detected in a shelf, with the debug picture and recognised model displayed in rviz.

Recognition performance¶

The modelling tool provides full 3D object models from all the views you provided, which in principle allow the recogniser to recogise the object in any condition dfrom any view. Practically, however, recognition performance depends on several factors: * Distance: Performance can quite rapidly decline with distance. First, because the object features on which the recogniser depends become too small (no way that it could detect an object just a few pixels large). Second, because the depth data, on which a pose verification step in the recogniser depends, becomes more and more noisy (and close to useless beyond 3 m or so) * Lighting conditions: In principle the object features are lighting invariant. Practically, different characteristics of the camera which was used for modelling and the camera used for recognition can affect the appearance of the object features. * Motion blur: The robot might be moving while it taske a picture. Motion blur will deteriorate object feature extraction. * Occlusions: Objects might not be entirely visible. The recogniser does not need all object features, so it can handle a certain amount of occlusion. How much, depends on the object and how many features it is has. * Object specifics: Some objects are harder to detect than others, e.g. because they have few features, are small, have a somewhat shiny surface, or are non-rigid.

Before using the recogniser in any object search scenario it is therefore important to gather some statistics about the recognition performance. The recogniser’s confidence value can be a useful measure. But don’t trust it too much -it is not an actual probability.

Useful aspects to learn are: * How fast the recognition rate (in how many cases is the object found) drops with distance. * How false positive rate and confidence measure are related.

Trouble shooting¶

If you get an error like this

terminate called after throwing an instance of 'flann::FLANNException'
  what():  Saved index does not contain the dataset and no dataset was provided.
[recognition_service-2] process has died [pid 17534, exit code -6, cmd /home/mz/work/STRANDS/code/catkin_ws/devel/lib/singleview_object_recognizer/recognition_service __name:=recognition_service __log:=/home/mz/.ros/log/61fb16b8-4afc-11e5-801d-503f56004d09/recognition_service-2.log].
log file: /home/mz/.ros/log/61fb16b8-4afc-11e5-801d-503f56004d09/recognition_service-2*.log

locate the file sift_flann.idx, probably right in your catkin workspace or in ~/.ros, and remove it.

References¶

When referencing this work, pleace cite:

J. Prankl, A. Aldoma Buchaca, A. Svejda, M. Vincze, RGB-D Object Modelling for Object Recognition and Tracking. IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2015.
Thomas Fäulhammer, Aitor Aldoma, Michael Zillich and Markus Vincze Temporal Integration of Feature Correspondences For Enhanced Recognition in Cluttered And Dynamic Environments IEEE International Conference on Robotics and Automation (ICRA), Seattle, WA, USA, 2015.
Thomas Fäulhammer, Michael Zillich and Markus Vincze Multi-View Hypotheses Transfer for Enhanced Object Recognition in Clutter, IAPR International Conference on Machine Vision Applications (MVA), Tokyo, Japan, 2015.
A. Aldoma Buchaca, F. Tombari, J. Prankl, A. Richtsfeld, L. di Stefano, M. Vincze, Multimodal Cue Integration through Hypotheses Verification for RGB-D Object Recognition and 6DOF Pose Estimation. IEEE International Conference on Robotics and Automation (ICRA), 2013.
J. Prankl, T. Mörwald, M. Zillich, M. Vincze, Probabilistic Cue Integration for Real-time Object Pose Tracking. Proc. International Conference on Computer Vision Systems (ICVS). 2013.
